In order to set up or edit Groups, navigate to the Atlas portal by going to

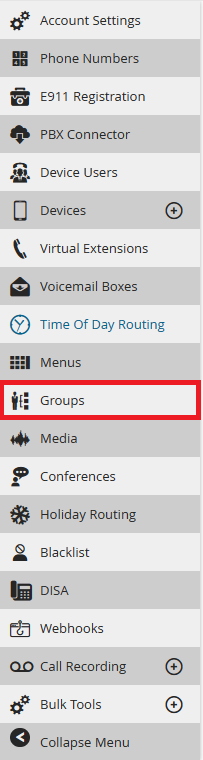

https://my.voipmd.com and click on VOIP, then Groups on the left-hand column.
If you are creating a New Group, Click on "Add Group" in the top right of your windown.
If you are editing an existing group, click on the group name in the table below.
Make sure to fill out all of the required information highlighted by a Star (*).
Note: You are responsible for adhering to your local Call Recording Laws. Only enable this feature if you are allowed to record calls.
Group Type: Default is Device Users - Set to Devices if you want to select certain devices
Repeat: Default is 0 - Set a number if you want calls to repeat their ring cycle multiple times.
After Group Forward Call: This sets the option for where the call is delivered if no one answers the call.
None: It will simply disconnect the caller
Check Voicemail: If you wish the caller to be able to check voicemail
Conference: If this extension is to be used for a Conference Bridge, select this option.
Conference Service: If this extension is to be used for a Conference Bridge, select this option.
DISA: You must call our office before using this option - Using this will result in additional monthly billable minutes
Device User: Sends the call to another device user (extension)
Directory: Sends caller to the company directory
Fax: Use this if the extension is a fax line
Group: Sends caller to the selected ring group
Menu: Sends caller to the selected menu.
Outside: Sends caller to an outside line (phone number)
PBX Connector: Sends caller to the PBX Connector
Response Code: Rarely Used or for Integrations - Call our office before using this feature
Time of Day: Uses the default Time of Day available hours
Virtual Extension: Sends caller to the selected virtual extension
Voicemail: Sends caller to the selected voicemail box.
Play Media while Ringing: Default is No - Set to Use if you wish to deliver pre-recorded media such as a custom Music on Hold of Hold Music.
Add New: Allows you to upload a pre-recorded voicemail greeting.
Note: Pre-Recorded greetings must not exceed 10MB and should be uploaded in a .WAV or .MP3 format only. Name: Provide a unique name for your pre-recorded greeting.
Choose File: Locate the file on your local computer.
Use Existing: If you have already uploaded media to your account, you may choose to use an existing message by selecting this option
Media Category: Default is Voicemail Greetings
Select Media: Select the desired media previously uploaded
Device Users
There are two columns displayed to you. On the left are all of your available device users. By clicking and dragging that Available Device User to the right to Selected Users, you are adding them to the group. Only the Device Users under Selected Users will ring in this Group.
By Clicking and dragging the Device User, you can change the order in which their devices will ring if selecting "In Order" under "Ring Strategy" above.
To remove a user, simply click and drag the Device User from under Selected User to Available Users to the left.
Click Save
